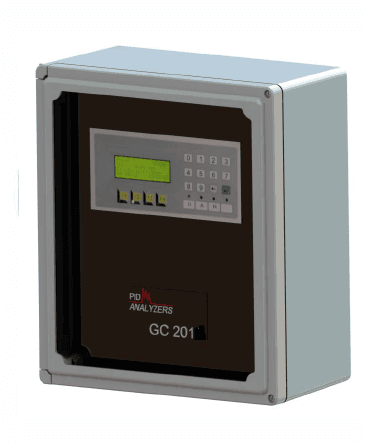

Model 201 Continuous Monitor
Product information
The Model 201-C PID is a flexible and versatile Analyzer. More than three thousand of these photoionization detector (PID) based Analyzers have been sold worldwide for applications ranging from carbon bed breakthrough, leak detection to stack and ambient air monitoring. This is attributed to the rugged and durable design that is characteristic of all PID Analyzers products. Several years ago, we added the flame ionization detector (FID) to the 201 series product line. Other continuous Analyzers in the 200 series include the Model 202 Infrared (IR) for Carbon dioxide, hydrocarbons, carbon monoxide, thermal conductivity detector (TCD), Model 204 and a Model 210 Zirconium Oxide Oxygen Analyzer. The addition of these new Analyzers greatly improves the capability and range of process analyzers from PID.
Specifications
- Detectors available
PID & FID
- Measurement mode
Continuous Zero drift- Automatic compensation; <1% per month
- Span drift
Auto cal each 24 hours
- Wide range of response
from sub ppm on PID to % on the FID
- Support gases
PID requires no support gases; FID requires H2 and zero air
- Readout
7" HDMI Color Display
- Standard output
WiFi, RS232
- Enclosure
Rack (NEMA 2)-: 19" W x 11"H x 15"D
Weight: 22 pounds PID 24 pounds
FID Wall (NEMA 4) 23"W x 21"H x 7"D- PID 27"W x 21"H x 10"D- FID
Weight: -27 pounds PID
- PID and FID Range
PID and FID Range PID range - 0.1 to 5,000 ppm > C4 plus, VOC’s, inorganic species such as H2S, NH3, I2, PH3, AsH3, Sulfur etc. FID Range- 1- 20,000 ppm, 1-2,000 ppm VOC’s (hydrocarbons only)
Features
- Automatic Restart
In the event of a power outage, the instrument will automatically restart
- Low cost of ownership
The long lifetime of the analyzer coupled with the minimal level of maintenance results in a low cost of ownership
- Wide operating range
with no range changing necessary- 16 Bit ADC Push button Automatic calibration
- Push button Automatic calibration
automatically adjusts response
- Autozero for PID
Automatically injectszero gas & adjusts auto zero for FID
- PID- lamp out alarm
FID-flame out shuts off hydrogen and provides alarm
- RS232 digital output; 0-1 VDC analog
output, WiFi, Bluetooth
- Up to 6 dual setpoints
that are programmable- can be used to shut down a process, Range_ ppm 0-50, 0-500 0-5,000
