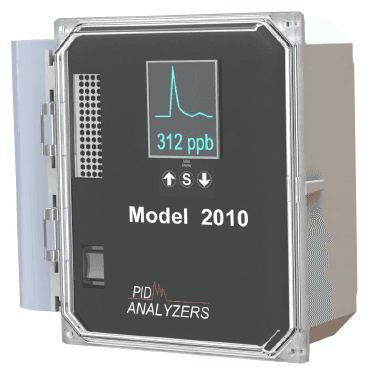

Model 2010 Concentrator
Product information
The Model 2010 is an analyzer for the measurement of accurate ppb levels of Hazardous Materials (Total VOC’s) at fencelines & in the workplace. This analyzer is unusual since it is easy to calibrate, and operate. It will produce high mV readings at 1 ppb and below.
Specifications
- Type
PID for total VOC’s at ppb levels
- Range
0.1 to 50,000 ppb total VOC's
- Power
120 VAC; battery optional
- Display
3.5'' Bright OLED graphical display
- Accuracy of Measurements
CV = 8 % at 325 ppb total VOCs in indoor air
- Analysis Time
Five minute cycle
- Operating temperature
0-50 C
- Certifications
CE, RoHS
- Analog channels Electrical classification
16 bit ADC for best precision & accuracy
- Outputs
General Purpose
- Datalogging
RS232, & Bluetooth (ASCII output)
- Alarm
100,000 runs includes Bluetooth, RTC, memory Audible for exceeding the TWA or STEL for indoor workspace
Features
- Bright OLED Display
- Hazardous chemicals measurement at ppb levels
- Integral concentrator for more accurate measurements at ppb levels
- Data is stored for each run > 100,000 samples measurement to be transferred to a PC or the Cloud
- Ease of ASCII data transfer
