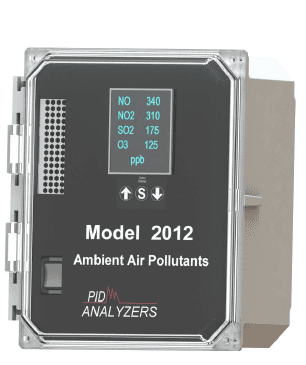

Model 2012 Ambient Air Analyzer
Product information
The Model 2012 is an analyzer for the measurement of accurate ppb levels of NOx, O3 & SO2 in ambient air & in the workplace. This analyzer is unusual since it is easy to calibrate, and operate. Well tested electrochemical sensors are provided for measuring common toxics in ambient air.
Specifications
- Type
Electrochemical Sensors for NO, NO2, O3, SO2
- Range
NO, NO2, O3 ppb to 20 ppm (max), SO2 ppb to 50 ppm (max)
- Power
120 VAC ; 3.7 V LiPO battery optional
- Display
3.5” Bright TFT Color Display
- Dimensions
6.75" H x 7.75"H x 4" D
- Accuracy of Measurements
CV = +/-5%
- Analysis Time
Continuous cycle
- Operating temperature
0-50 C
- Certifications
CE, RoHS
- Analog channels
0-1VDC
- Electrical classification
16 bit ADC for best precision & accuracy General Purpose
- Outputs
RS232, & Bluetooth (ASCII output)
- Datalogging optional
- Programable Alarms
> 100,000 runs includes Bluetooth, RTC, memory Audible for exceeding the TWA or STEL for indoor workspace
Features
- Bright TFT 3.5" Color Display
- NOX, O3 ... measurement at ppb levels
- Data is stored for each run > 100,000 samples
- measurement to be transferred to a PC or the Cloud
