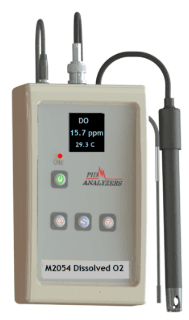

Model 2054 Dissolved Oxygen Analyzer

Product information

  • The new range of state-of-the-art hand held analyzers are employed for water quality measurements in lakes, streams, processes. They have LiPO batteries rated with UN 38.3 classification for land or air shipments. They are very competitively priced and the data can be easily logged and sent to a PC
Model 2054 Dissolved Oxygen Analyzer image coming soon

Specifications

Measurements

DO ppm (0-20 ppm) , T C

Display

Bright OLED

Dimensions

6 1/4” x 3 3/4” x 1 3/8

Power

LiPO rechargeable 9VDC

Range

0-20 ppm DO

Operating temperature range

0-50o C

Temperature

Temperature Measurement

Certifications

CE, RoHS

Analog channel

16 bit ADC for better precision & accuracy

Electrical classification

General purpose

Outputs

RS232 (USB connection)

Memory w/o Datalogging

1000 points

Datalogging - Optional

With Bluetooth, Real Time Clock , Memory > 100,000 points. Turn on BT to send data to PC

Other options
  • Magnetic stirrer
  • Spear pH electrode. Industrial pH electrode
  • Low, medium & high level conductivity electrodes
What’s included

DO meter, & Probe, T probe, electrode holder

Features

Bright OLED display
T Probe
16 bit ADC
Rechargeable LiPO battery
Optional Bluetooth & RTC with data logging
