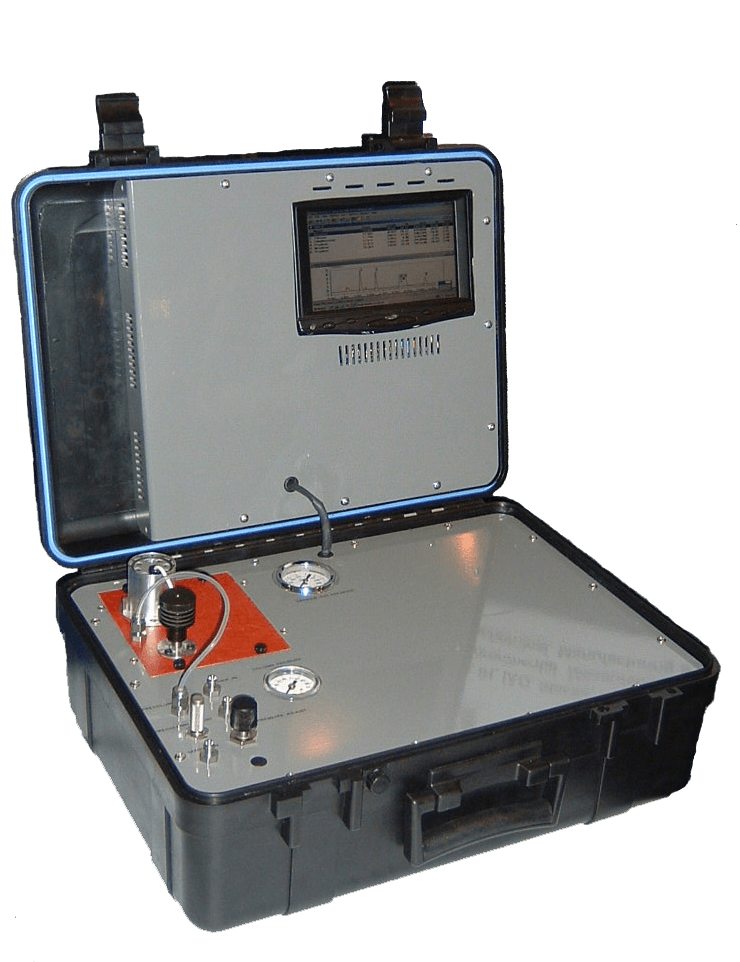

Model 312 Portable GC
Product information
- PID Analyzers offers a new lightweight portable GC for IH, environmental, Process & Stack Monitoring, and Building Security applications.
- The base Model 312 comes with Embedded Intel PC, Windows 10 OS, PeakWorks Software, Remote Control (worldwide for Troubleshooting, Training etc.)
Specifications
- Detectors
Photoionization detector (PID), Flame ionization detector (FID), Thermal conductivity detector (TCD), Flame photometric detector (FPD) (S or P), Far UV absorbance (FUV) detector
- Measurement mode
Manual or Continuous, Syringe or 10 port valve
- Battery life
NiMH 6-8 hours
- Temperature range
30-60o C on battery; 30-80o C on line or 12 VDC
- Zero drift
Automatic zero
- Span drift
Less than 1% every month with calibration
- Wide range of response
from ppb to 100%
- PC
1.66 GHz Pentium
- Readout
10” Color VGA Monitor with touch screen (1024 x 760 resolution)
- Storage device
32 Gigabyte solid State Drive, Internet connectivity
- Operating System
Windows 10
- Standard outputs
1 RS232; USB ports, 0-10V anal. Bluetooth, WiFi
- Enclosure
Heavy duty plastic
Dimensions:18.75" L x 13.75"W x7.5"H
- Weight
27 pounds
- Power requirements
90-240 VAC-1 amp; 12 VDC
Features
- PID Lamps
Our 9.5 and 10.6 eV lamps remain the best in the business since we developed them over 30 years ago.
- FID
Our very sensitive FID has flame out sensor that will shut off the hydrogen if the flame goes out.
- FPD
Our very sensitive FPD has flame out sensor that will shut off the hydrogen if the flame goes out.
- Ease of calibration
Manual.
- Display
10” high resolution HDMI color touch screen
- PC
Embedded Pentium Computer with > 1 GByte of RAM; data storage on 1 Gbyte USB memory stick.
- Operating system
Windows 10 Operating System
- Peak Detection & System Operation
Controlled by our 32 bit PeakWorks software program with more than 20 years of development.
- ADC
Our 16 bit ADCs provide a resolution of 1 part in 64,000 and our signal algorithm minimizes noise by signal averaging in the msec range; the ADC can acquire positive or negative signals.
- Autoranging
The 312 has 3 ranges with computer controlled autoranging- x1, x 10, x 100.
- Autozero
Beginning of each run
- Programmable Voltage/current output
0-1VDC
- Digital outputs
USB connection
- Battery life
3-4 hours; can operate off cigarette lighter adapter
- Carrier gas
50 liters at 1500 PSI; typical capillary column 15-20 cc/min; typical packed column 30-40 cc/min
- Programmable setpoints
The low and high setpoints (depends on the options) can be customer programmed for each point and/or compound
- Oven
Size:
Typical column diameter: 3.5''
Temperature range:
Battery: 25-50 Degrees Celcius
External power: 25-100 Degrees Celcius
- Bluetooth Capability
- WiFi
- Remote Mini Bluetooth Keyboard / Mouse
