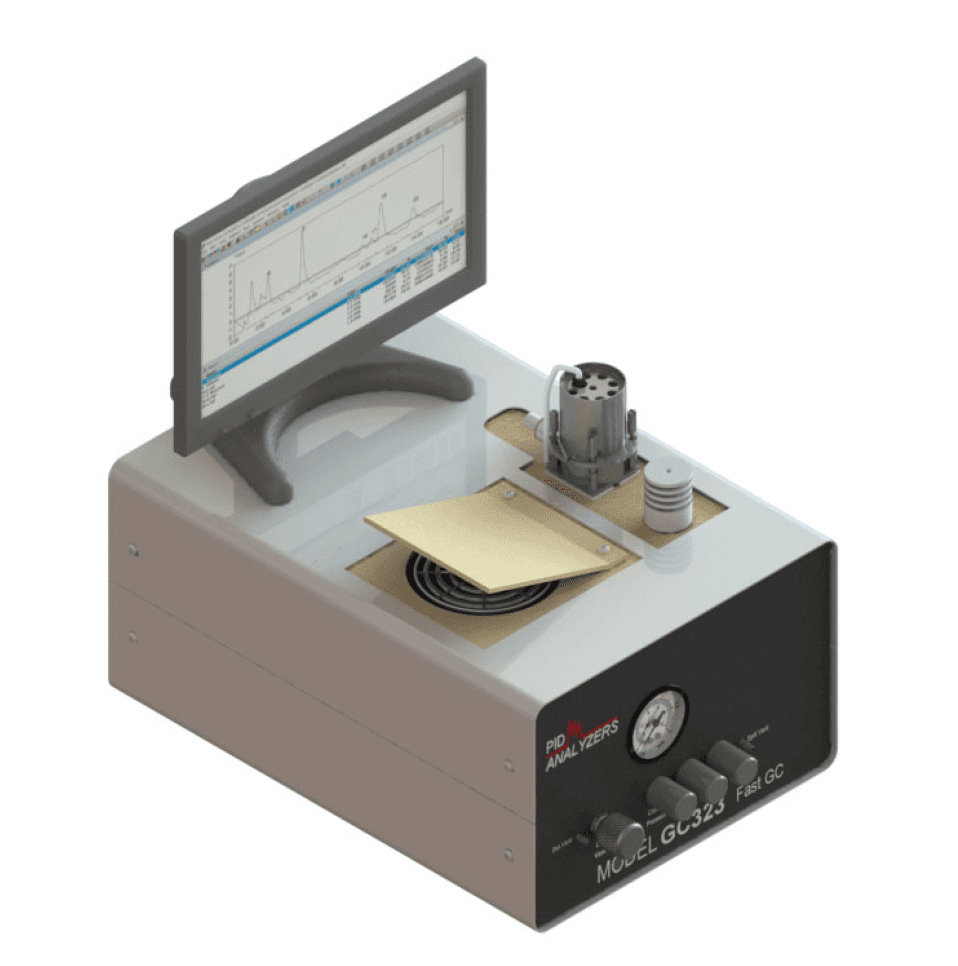

Model 323 High Performance Fast GC
Product information
PID Analyzers offers a new lightweight transportable portable GC for environmental, quality control, natural gas... applications. The GC is extremely easy to use with its 10” VGA Color screen. It has significant data storage capability in a 32 GByte solid state drive, & a choice of one of our excellent GC detectors. The 323 will go anywhere with its light weight (17 #). The GC is powered by an Intel Pentium PC with Windows 10 operating system and PeakWorks chromatography software. This new gas chromatograph has a low mass column that allows fast GC programming.
![Model 323 High Performance Fast GC](/_next/image?url=https%3A%2F%2Fres.cloudinary.com%2Fhnu%2Fimage%2Fupload%2Fv1718920318%2Fmodel-323_ldskgt.png&w=3840&q=75)
Specifications
- GC Detectors available
PID, FID, FPD (S or P), FUV, & TCD
- Measurement mode
Manual or Continuous, Syringe or 10 port valve
- Temperature range
30-300 degrees C on
- Zero drift
Automatic zero
- Span drift
less than 1% every month with calibration
- Wide range of response
from ppb to 100 %
- PC
1.66 GHz pentium
- Readout
10” Color VGA Monitor (1024 x 760 resolution)
- Stroage device
32 Gbyte solid State Drive, Internet connectivity
- Fast Temperature programming
up to 60-70 C/min
- Operating System
Windows 10
- Standard outputs
1 RS232; USB ports, 0-10V anal. bluetooth, WiFi
- Enclosure
Steel enclosure
Dimensions:14" L x 10"W x 6.5"H
- Weight
17 pounds
- Power requirements
90-240 VAC-1 amp; 90-220 VDC
Features
- Embedded Pentium PC with an external 10" Color Monitor or an HDMI output so that a 24" TV can be used instead
- Keyboard with glide bar provides convience & ease of use Rugged steel case for field operations Gas or liquid samples 90-220 V Line operation
